SW-D301FS-6

Specification
  • 1. Operating Voltage: DC 9-33V
  • 2. Water & Dustproof rating: IP68
  • 3. Temperature range: -40°C to +60°C
  • 4. Life span: 50,000 hrs
  • 5. Housing color: Black

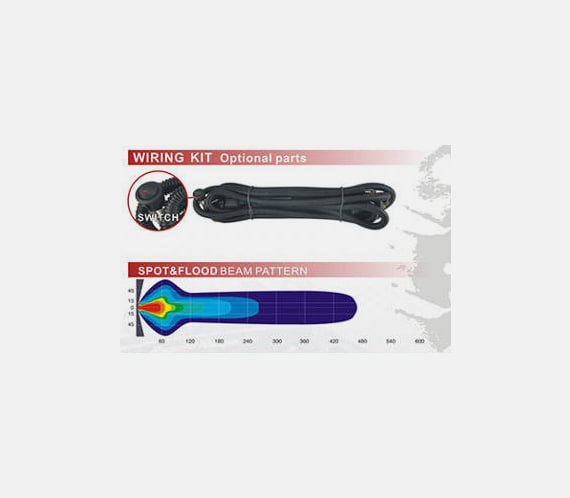

  • 6. Beam Pattern: COMBO
  • 8. Mounting: Aluminum bracket
  • 9. Efficient heat dissipation; Aluminum housing
  • 10. Mounting: Aluminum firm bracket
  • 11. Lens: PC with hard coating
  • 12. Color temperature: 6000K
  • 7. Easily mountable on forklifts, tractors, earthmoving, and other heavy duty mobile applications as well as commercial fishing trawlers -these lights enhance operational efficiency and safety.


Size A B C D E F
6" 44 80 236 194 196 38
10" 44 80 337 295 297 38
20" 44 80 591 549 551 38
30" 44 80 845 803 805 38
40" 44 80 1099 1057 1059 38
50" 44 80 1353 1311 1313 38

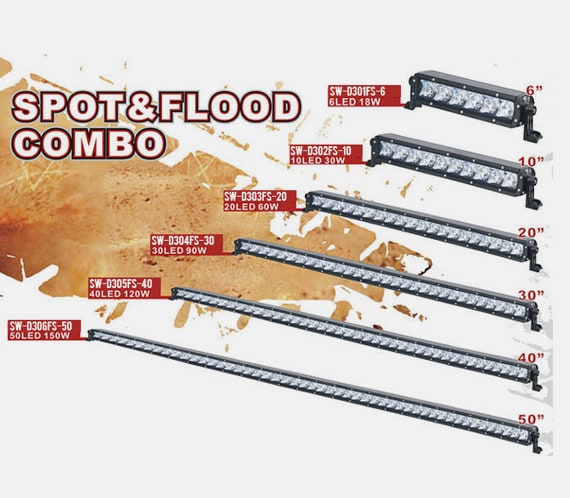

Item No LED LED QTY OPERATING VOLTAGE CURRENT LED COLOR TEMPERATURE LIFE SPAN LUMINOUS FLUX WATER&DUST PROOF RUNNING AMP DRAW(Al) DC12V RUNNING AMP DRAW(Al) 24V POWER
SW-D202FS-6 3W 6LED 9-33V 1.113 6000K 50,000 hrs 720 Lm IP68 1.2 0.6 28W
SW-D203FS-10 3W 10LED 9-33V 1.855 6000K 50,000 hrs 1,200Lm IP68 2 1 30W
SW-D204FS-20 3W 20LED 9-33V 3.710 6000K 50,000 hrs 2400 Lm IP68 4 2 60W
SW-D205FS-30 3W 30LED 9-33V 5.515 6000K 50,000 hrs 3600 Lm IP68 6 3 90W
SW-D206FS-40 3W 40LED 9-33V 7.420 6000K 50,000 hrs 4800 Lm IP68 8 4 120W
SW-D207FS-50 3W 50LED 9-33V 9.275 6000K 50,000 hrs 6000 Lm IP68 10 5 150W
